PlotBinaryOperator Class Reference

An extension of PlotExpression defining a binary operation. More...

#include <plotbinaryoperator.h>

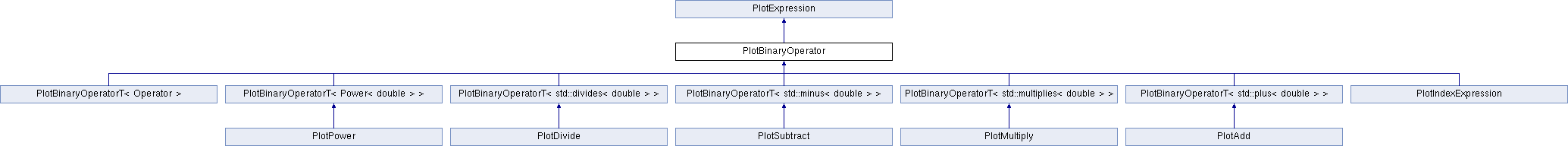

Inheritance diagram for PlotBinaryOperator:

Public Member Functions
	PlotBinaryOperator (PlotExpression *left, PlotExpression *right)
	Create a binary operator on the given left and right expressions. More...
	~PlotBinaryOperator ()
	Destructor, destroying left and right.
void	setLeft (PlotExpression *left)
	Set the left branch. More...
const PlotExpression *	left () const
	Get the left branch. More...
void	setRight (PlotExpression *right)
	Set the right branch. More...
const PlotExpression *	right () const
	Get the right branch. More...
virtual BindResult	bind (const QList< PlotInstance * > &curves, PlotBindingTracker &bindTracker, PlotExpressionBindDomain &domain, bool repeatLastBinding=false)
	Binds the left and right branch expressions. More...
virtual void	unbind ()
	Unbind left and right branches.
bool	explicitTime () const override
	Is the generated expression sensitive to changes in the time domain? More...
Public Member Functions inherited from PlotExpression
	PlotExpression ()
	Empty constructor.
virtual	~PlotExpression ()
	Empty, virtual destructor.
virtual double	sample (double sampleTime) const =0
	Called to generate a sample at sampleTime. More...
virtual PlotExpression *	clone () const =0
	Performs a deep clone of the PlotExpression. More...
QString	toString () const
	Converts the PlotExpression into a parseable string form. More...

Detailed Description

An extension of PlotExpression defining a binary operation.

This is essentially a binary in the expression tree.

This tracks the branches and manages binding, but derivations are required to implement the sample() function.

Constructor & Destructor Documentation

PlotBinaryOperator::PlotBinaryOperator ( PlotExpression *  left, PlotExpression *  right  )

inline

Create a binary operator on the given left and right expressions.

Parameters

left	The left expression.
right	The right expression.

Member Function Documentation

virtual BindResult PlotBinaryOperator::bind ( const QList< PlotInstance * > &  curves, PlotBindingTracker &  bindTracker, PlotExpressionBindDomain &  domain, bool  repeatLastBinding = false  )

virtual

Binds the left and right branch expressions.

Handles exhaustive binding.

Implements PlotExpression.

bool PlotBinaryOperator::explicitTime ( ) const

overridevirtual

Is the generated expression sensitive to changes in the time domain?

Returns

True if any child returns true.

Reimplemented from PlotExpression.

const PlotExpression* PlotBinaryOperator::left ( ) const

inline

Get the left branch.

Returns

The left branch.

Referenced by PlotBinaryOperatorT< std::minus< double > >::clone(), PlotBinaryOperatorT< std::minus< double > >::sample(), and setLeft().

const PlotExpression* PlotBinaryOperator::right ( ) const

inline

Get the right branch.

Returns

The right branch.

Referenced by PlotBinaryOperatorT< std::minus< double > >::clone(), PlotBinaryOperatorT< std::minus< double > >::sample(), and setRight().

void PlotBinaryOperator::setLeft ( PlotExpression *  left )

inline

Set the left branch.

Does not release the existing branch.

Parameters

left	The new branch.

References left().

void PlotBinaryOperator::setRight ( PlotExpression *  right )

inline

Set the right branch.

Does not release the existing branch.

Parameters

right

The new branch.

References right().

---

The documentation for this class was generated from the following file:

• plotbinaryoperator.h
